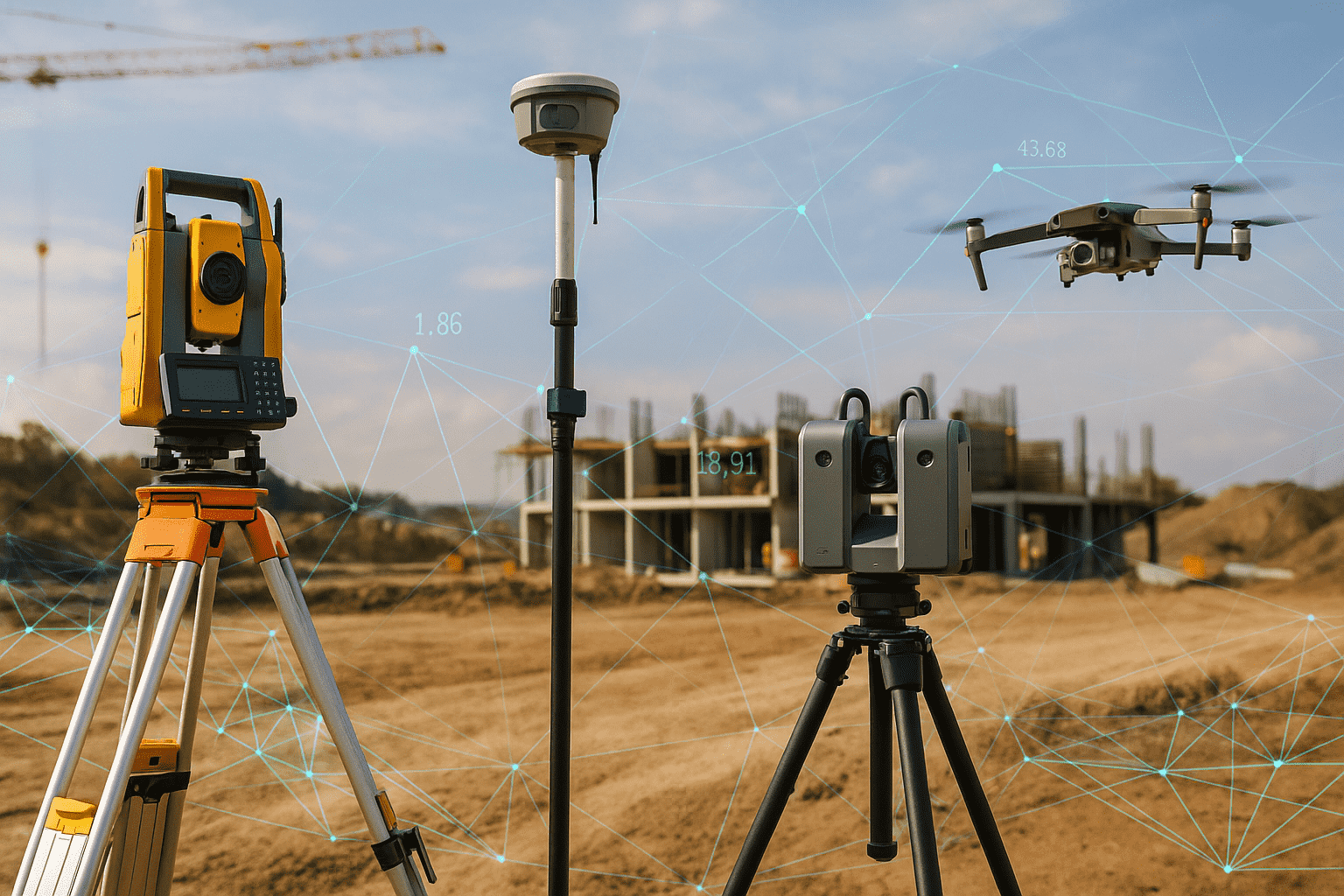

What Are The Surveying Equipment Tools?
| | |

The Core Surveying Equipment Tools Every Crew Must Have

ByWebmaster

Technically, the surveying equipment tools are used to collect data, taking two primary forms: research instruments (questionnaires/interviews for gathering information) or surveying instruments (physical equipment for measuring land, angles, and distances). These tools, ranging from software to electronic, are essential for data collection, research analysis, and site mapping.

The surveying instruments or surveying equipment tools are used to assist in measuring land, including vertical distance, horizontal distance, and volume of excavated material. A land surveyor may use various surveying equipment tools to make precise measurements of the earth’s surface. From determining measurements in the field, questionnaires, or research of legal instruments, and data analysis in the support of planning, designing, and establishing of property boundaries, and drawing a map with relevant details.

The Topmost Core Surveying Equipment Tools

Regarding the core surveying equipment tools, a survey is only as good as the gear and the person using it. If you work on construction sites, road alignments, pipelines, or boundary work, you need tools that hold calibration, survive weather, and make you faster without guessing. Students need to learn the same gear the field uses.

This guide lays out the core instruments, what they do, the specs that matter, and how different brands stack up. It is written in plain language so you can take it to class or to the site and actually use it.

Total Stations

A total station measures angles and distances, then stores or transmits data so you can compute coordinates and elevations. It is the main tool on many modern surveys.

What it does
Set out building corners, curb lines, centerlines, utilities, and control points. Collect topographic points. Check steel and concrete placements.

Key specs to look at

  • Angle accuracy. Common values are 1 arc second for high precision, 2 to 5 arc seconds for general work.

  • Distance accuracy. Typical EDM accuracy is about 2 millimeters plus two parts per million.

  • Range to prism. Often one to three kilometers in clear air with a standard prism.

  • Range without prism. Useful for reflectorless shots on facades and hard to reach points.

  • Compensator. Dual axis tilt correction keeps angles true on uneven ground.

  • Data transfer. Bluetooth, Wi Fi, USB, or controller cable.

  • Battery life. A full day on one or two batteries is the goal.

Pro tips
Warm up the instrument for a few minutes on cold mornings. Check backsight often on days with heat shimmer. Log a redundant check shot every hour so you can catch drift early.

Brand snapshots

  • Trimble S Series. Strong tracking and good with robotics. Cost is high but performance is consistent.

  • Leica TS Series. Very good optics and angle repeatability. Popular with construction layout.

  • Topcon and Sokkia. Reliable and often better value on price. Good battery life.

  • Nikon total stations. Solid for education and small firms.

Quick comparison

Model class Angle accuracy Reflectorless range Notes
Trimble S7 1 to 5 arc sec about 800 m Good scanning options and robotic control
Leica TS13 2 to 5 arc sec about 500 to 800 m Fast lock on prisms and clean optics
Topcon GM series 2 to 5 arc sec about 500 m Value choice with strong battery life

Use a total station when line of sight is clear and you want tight control on a site. If you do not have clear line of sight, move to GNSS.

Theodolites

A theodolite measures horizontal and vertical angles. It does not measure distance unless you add tapes or EDM accessories. Many schools still teach with them because the fundamentals matter.

What it does
Traverse work, alignment checks, optical plumbing, and angle only control.

Specs that matter
Angle accuracy. Five to ten arc seconds is common on teaching models. Optical plummet quality. Battery life if electronic.

Pro tips
Keep lenses clean and shaded. Log angles direct and reverse to average out collimation errors.

Brand snapshots

  • Topcon DT series. Durable and simple to use.

  • Leica Builder series. Friendly interface for training.

  • Sokkia DT series. Known for reliability.

A theodolite is fine for learning and for backup, but total stations have replaced it on most production work.

Auto Levels

Also called dumpy levels. These set a true horizontal line so you can read elevations on a staff. Simple. Fast. Trusted for concrete and drainage.

What it does
Check slab heights, set formwork, read cut and fill on grading, confirm slope on drainage lines.

Specs that matter

  • Magnification. Most are 24x to 32x. Higher power helps at longer distances.

  • Accuracy. Think of it as standard deviation per kilometer of double run leveling. Many are around two millimeters per kilometer.

  • Compensator range and damping speed. Good damping settles quickly after wind gusts.

  • IP rating. IP54 or better keeps dust and splashes out.

Pro tips
Always run a quick two peg test at the start of a big leveling job. Keep the staff plumb. Read the central hair to reduce parallax issues.

Brand snapshots

  • Leica NA series. Clear optics and fast focus.

  • Topcon AT B series. Rugged and popular on construction sites.

  • CST Berger and Bosch. Budget friendly and fine for light work.

Comparison

Model Magnification Leveling accuracy Notes
Leica NA532 32x about 1.6 mm per km Bright optics and robust build
Topcon AT B4A 24x about 2.0 mm per km Good value and weather resistance
Bosch GOL 32 32x about 1.6 to 2.0 mm per km Good for general contractors

GNSS GPS Surveying Units

GNSS receivers measure positions using satellite signals. With real time corrections they reach centimeter accuracy. Use them when you do not have line of sight over long distances.

What it does
Control networks, topographic mapping, stakeout on large open sites, asset mapping for utilities and farms.

Specs that matter

  • Constellations tracked. GPS, GLONASS, Galileo, BeiDou. More satellites mean better fixes.

  • Corrections. RTK with a base, NTRIP network, or PPP services.

  • Tilt compensation. Sensors that let you hold the rod plumb free and still get accurate points.

  • Initialization time. How fast you get a fixed solution.

  • Radio and cellular options. For rover to base links and NTRIP access.

  • Battery life. A full day on the pole without swaps keeps you productive.

Pro tips
Plan sessions with a satellite chart so you avoid low satellite windows. Keep the antenna area clear of your body and metal. On tree covered sites, save time with topo by TS for tight spots and GNSS for open runs.

Brand snapshots

  • Trimble R series. Very strong RTK and tilt compensation.

  • Leica GS series. Good tilt, smart workflows, and strong support in construction.

  • Topcon HiPer series. Good radio options and base rover kits.

  • Emlid Reach RS2. Budget RTK that works well for education and simple mapping.

Comparison

Model Tilt compensation Corrections Notes
Trimble R12i Yes RTK and network Excellent in tough multipath
Leica GS18 Yes RTK and network Fast tilt and smart workflows
Topcon HiPer VR Yes RTK and network Strong radio options
Emlid RS2 Limited RTK with NTRIP Good value for training and light jobs

Use GNSS in open sky. Switch to total station where trees or buildings block satellites.

Laser Levels

Laser levels project a line or a rotating plane. Rotary lasers cover large sites and work hand in hand with grade rods and receivers.

What it does
Pad grading, driveway slopes, formwork, ceiling lines, long fence alignment, drainage fall checks.

Specs that matter

  • Range. With a receiver many rotary units cover up to 500 meters radius.

  • Accuracy. Common values are plus or minus 1.5 millimeters at 30 meters, or around 1 sixteenth inch at 100 feet.

  • IP rating. IP66 or better for real weather.

  • Battery life. A full work week on one charge is ideal.

  • Slope capability. Single slope or dual slope for roads and large pads.

Pro tips
Use a receiver with an audible tone in bright sun. Keep the tripod low in wind. Store it in the hard case and lock the transport mechanism before moving.

Brand snapshots

  • Spectra Precision LL300N. Site tough and simple to run.

  • Topcon RL H5A. Long range and long battery life.

  • Bosch and DeWalt. Good for general construction and interior work.

Comparison

Model Accuracy Range with receiver Notes
Spectra LL300N about 1.5 mm at 30 m about 500 m radius Strong on grading and concrete
Topcon RL H5A about 1.5 mm at 30 m about 400 to 600 m Long run time and reliable
Bosch GRL series about 1.5 to 3 mm at 30 m shorter ranges Good for smaller sites and interiors

Leveling Staff and Grade Rods

These are the bars you read with a level or laser receiver.

What they do
Show elevation changes and grade. Used with auto levels and lasers on nearly every job.

Specs that matter

  • Scale. Feet inches eighths. Feet tenths. Metric. Pick what your jobs use.

  • Length. Collapsed length for transport and extended length for reach.

  • Build. Fiberglass or aluminum. Fiberglass handles weather better.

Pro tips
Keep the rod vertical for true readings. Use a bipod for long shots or windy days.

Brand snapshots

  • Crain SVR fiberglass rods. Tough and easy to read.

  • Seco rods. Widely used with many scale options.

  • Nedo and Sokkia. Good quality and clear markings.

Prism, Prism Pole, and Bipod

A prism reflects the EDM signal back to the total station. The pole positions the prism over a point. The bipod steadies it.

What they do
Stakeout and topo with total stations and robotics.

Specs that matter

  • Prism constant. Match it to the total station settings.

  • Pole scale and locking strength. Solid clamps prevent slips.

  • Bipod leg tips. Good tips hold on hard ground and gravel.

Pro tips
Check pole bubble daily. Paint or label your prism constant on the housing to avoid mismatches.

Brand snapshots

  • Seco and Dutch Hill poles and bipods. Durable and common on sites.

  • Leica and Trimble prisms. High quality and match their instruments well.

Tripods

Your tripod is the foundation for accuracy. Loose legs and worn heads cause real errors.

What it does
Holds levels, total stations, and lasers steady.

Specs that matter

  • Head type. Flat head and dome head. Match your instrument.

  • Material. Wood is stable. Fiberglass handles weather. Aluminum is light but can flex.

  • Clamps. Quick clamps save time. Screws grip well on old legs.

Pro tips
Seat the shoes into firm ground. On concrete use rubber pads. On wind days keep the legs wide and low.

Brand snapshots

  • Seco tripods. Strong and long lasting.

  • Nedo heavy duty models. Good locks and stiffness.

  • CST Berger and Bosch. Fine for light work.

Measuring Tapes and Wheels

Still useful and always in the truck.

What they do
Short checks, offsets, quick layout work, and cross checks for sanity.

Specs that matter

  • Steel or fiberglass blades. Steel is stable. Fiberglass resists moisture and shock.

  • Length. Keep a 30 meter or 100 foot, plus a 50 meter or 300 foot for longer pulls.

Pro tips
Do not yank the hook. Keep the blade clean so numbers do not vanish.

Field Books and Data Collectors

Record what you did so you can defend it later. A field book never runs out of battery. A data collector speeds work and prevents keying mistakes.

What they do
Store angles, distances, codes, and notes. Run stakeout routines and COGO.

Specs that matter

  • Screen visibility in sun.

  • Battery life for a full day.

  • Rugged rating such as IP65 or better.

  • Software that matches your office workflow.

Brand snapshots

  • Trimble TSC series. Common with Trimble instruments.

  • Leica CS series. Tight integration with Leica gear.

  • Topcon FC series. Good battery life and bright screens.

  • Panasonic and Juniper rugged tablets. Run vendor software and CAD.

Pro tips
Sync data every day. Keep a paper sketch of control and backsight for every setup.

Safety Gear

High visibility vests, hard hats, safety glasses, hearing protection, gloves, and boots with good tread. Add sun sleeves and water for hot sites. The best survey is the one you finish without injury.

Accessory List That Saves Time

  • Mini prisms for tight corners and short offsets

  • Optical or laser plummets for fast setups

  • Tribrachs with optical plummet and quick release adapters

  • Grade stakes and carpenter pencils with bright paint

  • Sun shade for instrument on hot days

  • Small torpedo level and wrench kit

Surveying Gear You Can’t Skip

Some tools are nice to have. These you simply cannot work without:

● Tripod and Tribrach – A total station without a stable tripod is useless.
● Prism Pole – The other half of every total station shot.
● Field Controller – For data entry, coding points, and quick checks.
● Backup Batteries – One dead battery can shut down a full crew.
● Level Bubble – A $10 part that prevents $10,000 mistakes.

And What You Can Work Without (Most Days)
● Sunshade for controller – Nice in summer, but not critical.
● Pole bipod – Handy, but you can manage without if you’re careful.
● Fancy carrying case – Any rugged pack will do if you’re organized.

How to Pick the Right Tool for the Job

Building layout on a tight site
Total station with a prism and good tripods. Laser level for slab and interior.

Large open topo
GNSS with RTK and a data collector. Total station for check shots and under trees.

Road and drainage work
Laser level with slope function. Auto level for checks. Grade rods marked in tenths.

Boundary retracement
Total station and theodolite knowledge for angles. GNSS for control ties where legal and suitable. Field book notes are critical.

Small contractor jobs
Laser level for pads and drains. Auto level for quick checks. A compact total station if layout gets complex.

Common Mistakes and How to Avoid Them

  • Skipping backsight checks. Do a quick check at every setup.

  • Setting tripods on soft soil without stomping feet. Push legs down to refusal.

  • Using a receiver on high speed rotation indoors. Slow the head so you can see the beam.

  • Storing gear wet. Dry cases and instruments before closing the lid.

  • Relying on one tool only. Mix GNSS and total station so you can keep moving when conditions change.

Brand Strategy by Budget

Student budget
Used auto level, used theodolite, fiberglass rod, light tripod, tape, and a simple data collector app on a rugged phone or tablet. Learn fundamentals before chasing high end gear.

Small contractor budget
Rotary laser with receiver, auto level, sturdy tripod, tenths rod, and a starter total station if you do layout often.

Survey firm budget
Robotic total station, base rover GNSS kit with network corrections, several tripods and prisms, rugged data collectors, and backup levels. Add scanning options if you do as built work on complex sites.

Side by Side Summary Tables

Surveying Instruments List for Construction and Land Work

Must-Have Surveying Tools and How They Work

Total stations

Use case Best choice Why
High accuracy building control Trimble S7 or Leica TS high accuracy Strong angle precision and tracking
General construction layout Topcon GM series Good value and battery life
Education and training Nikon or Sokkia entry models Lower cost and simple menus

GNSS

Use case Best choice Why
Urban and tree cover mix Trimble R12i or Leica GS18 Tilt and strong multipath handling
Open farmland and utilities Topcon HiPer Good radio range and battery life
Student training and mapping Emlid RS2 Affordable RTK learning platform

Auto levels

Use case Best choice Why
Concrete crews Leica NA532 Bright optics and fast focus
General contractors Topcon AT B4A Rugged and accurate enough
Budget setups Bosch GOL 32 Good cost to performance

Rotary lasers

Use case Best choice Why
Large grading sites Spectra LL300N Site tough and accurate
Long days without charging Topcon RL H5A Very long battery life
Interior and small sites Bosch GRL series Easy to use indoors

Workflow That Prevents Rework

  1. Start with control. Check known points or set your own with redundancy.

  2. Warm up instruments. Optics and electronics stabilize after a few minutes.

  3. Calibrate checks. Quick two peg for levels. Backsight checks for total stations. Fix status on GNSS.

  4. Log everything twice. Digital file and a field book sketch.

  5. Move in a loop. End where you started so you can close the loop and see error.

  6. Back in the office, run adjustments and flag outliers before you issue results.

Final Advice

Buy the best tripod and rod you can. A strong base makes every instrument better. Keep gear clean. Store it dry. Calibrate on a schedule. Mix tools so you are never stuck by trees, traffic, or weather. Learn the old methods so you can spot when a fancy screen is lying to you.

A good surveying equipment tool kit is not about one brand or one shiny instrument. It is a system that matches your work. If you are a student, master the basics and ask to shadow crews. If you run a firm, invest in instruments that cut setup time and survive abuse. If you build things, pick the tool that makes your layout fast and repeatable. The right equipment lets you measure once and build with confidence.

Similar Posts

Leave a Reply

Your email address will not be published. Required fields are marked *
